Digital Clamp Earth Resistance Tester for Accurate Electricity Measurement

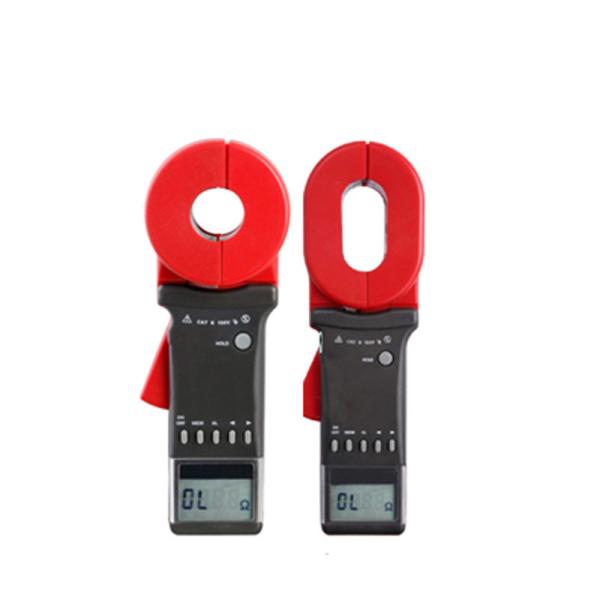

XHDQ703 Digital Clamp Earth Resistance Tester for Accurate Electricity Measurement

XHDQ703 Digital Ground Resistance Tester is widely applied in ground resistance measurement, loop resistance measurement in fields such as electric energy, telecommunications, meteorology, oil field, architecture and industrial electrical equipment, etc.
Main Features

1. Ground resistance tester and loop resistance tester.
2. More safer and faster when test loop resistance system, No need to disconnect the ground wire and without auxiliary electrode.
3. Short boot time, Self just 0.5 seconds, boot instantaneously.
4. Automatically identify Interference signal, automatic transmission.
5. Sound and light alarms, RS232 interface

1. Power Supply: 6VDC, 4 PCS of AA Alkaline batteries
2. Resistance Range: 0.01-1200Ω
3. Resistance Resolution: 0.001Ω
4. Resistance Accuracy: ±1%±0.01Ω
5. Data memory : 99 Sets
6. Alarm Threshold Setting Range Resistance: 1-199Ω
7. Working Temperature and Humidity: -20°C-55°C; 20%RH-90%RH
8. LCD Screen: 4 Digits LCD display; Screen L×W: 47mm×28.5mm
9. Clamp Size: 65mm×32mm
10. Clamp Opening: Extent 32mm
11. Weight: 1160g (With batteries)
12. Dimension : 285mm×85mm×56mm

Packaging: Wooden case filled with foam

Shipping: by Air, Sea, Express, etc.

Shipping time: 7-15 days if it's in stock.
