Grounding Down Conductor Tester Automatic Shift Output Current and Customizable

Name: Grounding Down Conductor Tester Automatic Shift Output Current and Customizable
Brand: XZH TEST
Price: 1 USD

Buy cheap Grounding Down Conductor Tester Automatic Shift Output Current and Customizable product

Brand Name : XZH TEST

Model Number : XHDT702

Certification : ISO,CE

Place of Origin : Xi'an, Shaanxi, China

MOQ : 1 unit

Payment Terms : T/T

Supply Ability : 1000pieces/Year

Delivery Time : 5-8 days

Packaging Details : wooden case

Model NO. : XHDT702

Customized : Customized

Output Current : 10A,1A Automatic Shift

Transport Package : Wooden Box with Foam Inside

Trademark : XZH TEST

Customization : Available

Warranty : 12 Months

Test Mode : Saved Test

Contact Now

Grounding Down Conductor Tester XHDT702 1A Automatic Shift Output Current and Customizable

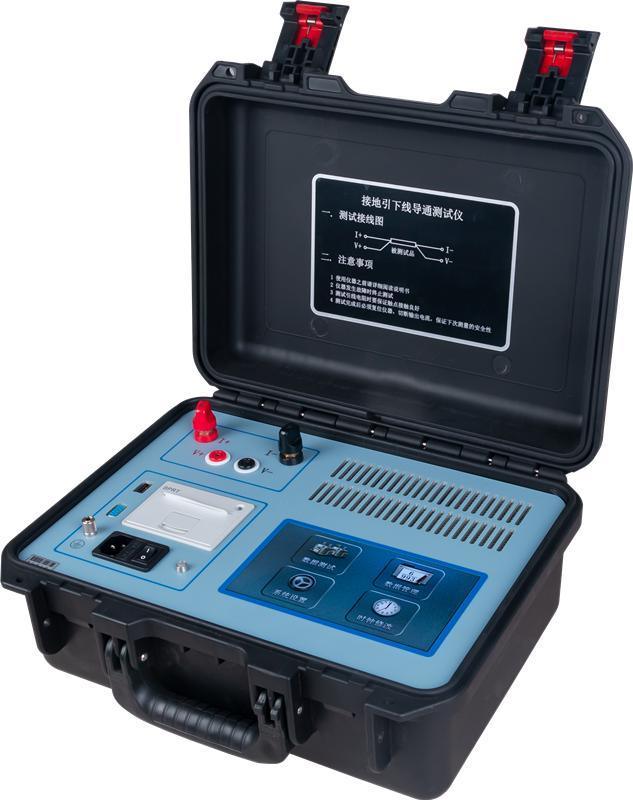

XHDT702 Grounding Down Conductor Tester

XHDT702 is specially designed for down conductors. The connection between the ground down conductors of power equipment and the ground network is the fundamental guarantee for the safe operation of power equipment. The connection between the power supply equipment and the grounding down conductor grounding grid. During long-term operation of power equipment, the connection may be affected by factors such as moisture, and the joint may rust or even break, resulting in the connection of the ground down conductor to the grounding grid. The point resistance increases, which cannot meet the requirements of power regulation, and there are hidden dangers of unsafe operation of the device.

Grounding Down Conductor Tester Automatic Shift Output Current and Customizable

Main feature

The whole machine is controlled by high-speed single-chip microcomputer, with high automation and easy operation.
The instrument adopts new power supply technology, with many current gears and wide measuring range.
Intelligent power management technology, the instrument always works in the minimum power state, effectively reducing the internal heat of the instrument and saving energy.
320K240 dot matrix ultra-small pixel 65K true color LCD, clear display under strong light
The instrument comes with power-down storage and can store 1000 sets of test data, which can be viewed at any time.
The instrument comes with a lithium battery, built-in charger, integrated design, easy to operate

Main technique

Output current: 1A, 3A, 5A, 10A
Resolution: 0.1μΩ
Range: 10mΩ-10Ω (1A Grade)
5mΩ-3Ω (3A Grade)
1mΩ-2Ω (5A Grade )
0.8mΩ-0.8Ω (10A Grade)
Accuracy: ± (0.5% ± 2 words)
Working temperature: 0 ~ 40 ° C
Working humidity: <90% RH, no condensation
