Product Introduction

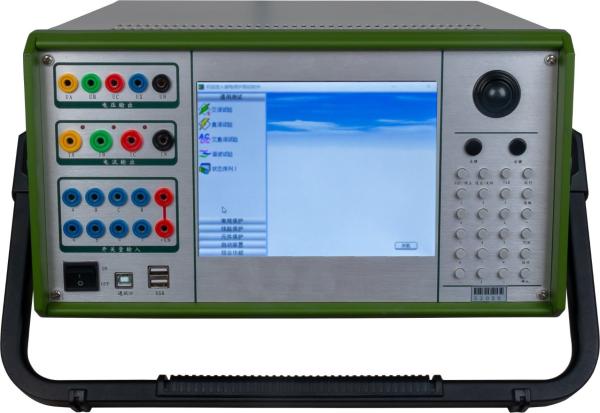

XHJB610/611 relay tester is designed for testing high voltage and low voltage electronic power supply relay set kit. It can finish the test of general calibration of relay, secondary circuit test, characteristics of CT test.
It can complete the verification of various common relays, check the secondary circuit, check the characteristics of the transformer, verify the action value of the circuit breaker trip mechanism and measure the opening and closing time of the circuit breaker.Under the control of high-performance single-chip microcomputer, the relay protection calibrator has the characteristics of high precision, full function, stable performance, simple operation and flexible movement.
Main Specifications
1. AC and DC voltage standard meter, current standard meter, accuracy 0.5;
2. Intelligent digital timing: timing length 0.000 ~ 9999S; accuracy: 0.5% ± 2 words;
3. DC voltage output: 0~350V/4A continuously adjustable; rated capacity: 1000VA;
4. AC voltage output: 0 ~ 380V / 1A continuously adjustable; rated capacity: 400VA;
5. DC current output: 0~10A/24V continuously adjustable; rated capacity: 240VA;
6. AC current output: 0 ~ 10A / 40V and 0 ~ 100A / 14V; rated capacity: 1000VA;
7. AC under voltage analog output: (can be used for low-voltage relay action time test)
8. Output voltage: ≤ 260V; pressure drop range: 15 ~ 100%
9. DC voltage selection output (operating power supply for static relays)
10. Output voltage: 24/48/110/220V; output current: 0.4A
